CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20

Name: CS060150W Industrial Electric Heaters Touch Safe Hazardous Area Heater IP20
Brand: Winston/OEM
Price: 1 USD

China CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20 wholesale

Brand Name : Winston/OEM

Model Number : CS060 50W 100W 150W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Voltage : 120 - 240VAC* (min. 110V, max. 265V)

Heating element : PTC resistor - temperature limiting

Mounting : clip for 35mm DIN rail, EN 60715

Protection class : IP20 / II (double insulated)

Power : 50W 100W 150W

OEM : Yes

Operating/Storage temperature : -45 to +70°C (-49 to +158°F)

Operating/Storage humidity : max. 90% RH (non-condensing)

Contact Now

CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20

● Low surgace temperature

● Quick mounting due to clip fixing

● Doble insulated(plastic)

● Wide ovltage range

● Small size

Touch-safe heater for the use in enclosures with electrical/electronical components.

The design of the heater supports the natural convection which results in a high air-current of warm air.

The surface temperatures on the accessible side surfaces of he housing are kept down as a result of the heater design.

Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060.

This heater is also avaiable in a version with plug-in thermostat requiring no additional wiring (CSF 060).

Both versions are designed for permanent operation.

TECHNICAL PARAMETER

Operating voltage	120-240V AC/DC* (min. 110V, max. 265V)
Heating capacity	See table
Heater element	PTC resistor-temperature limiting
Surface temperature	<80 °C(176 °F),except upper protective grille
Connection	4-pole terminal 2.5mm2, torpue 0.8Nm max.
Casing	Plastic according to UL94-V-0, black
Mounting	Clip for 35mm DIN rail, EN 50022
Fitting position	Vertical
Operating/Storage temperature	-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class	IP20 / II (double insulated)
Accessoires	Mounting clips (see illustration), Art. No. 09008.0-01
Note	Other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx.10%

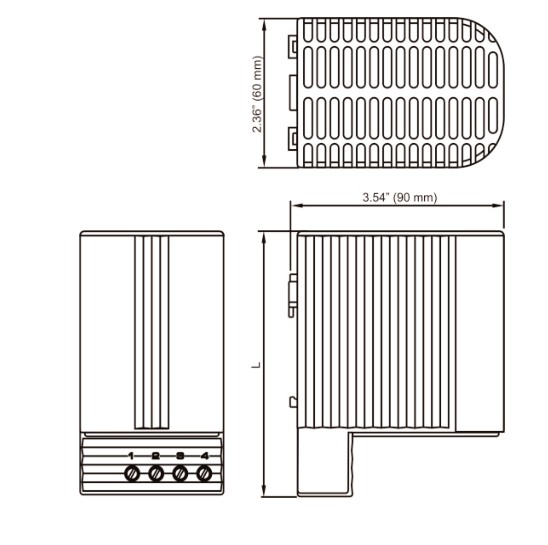

Art. No.	Heating capacity⊃1;	Inrush current (max.)	Pre-fuse T (time-delay)	Air outlet temperature⊃2;	Dimensions	Weight (approx.)
06000.0-00	50W	2.5A	4A	+86°C (186.8°F)	110 x 60 x 90mm	0.3kg
06010.0-00	100W	4.5A	8A	+120°C (248°F)	110 x 60 x 90mm	0.3kg
06020.0-00	150W	8A	8A	+145°C (293°F)	150 x 60 x 90mm	0.5kg

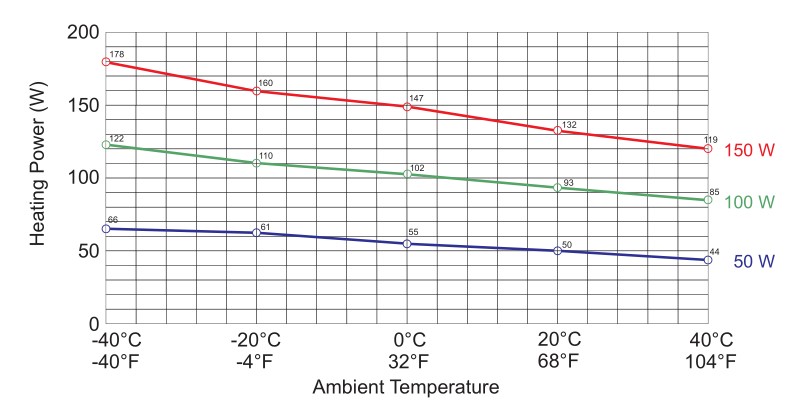

1. ambient temperature - see Heating capacity / Ambient temperature diagram;
2; measured 50mm above protective grille

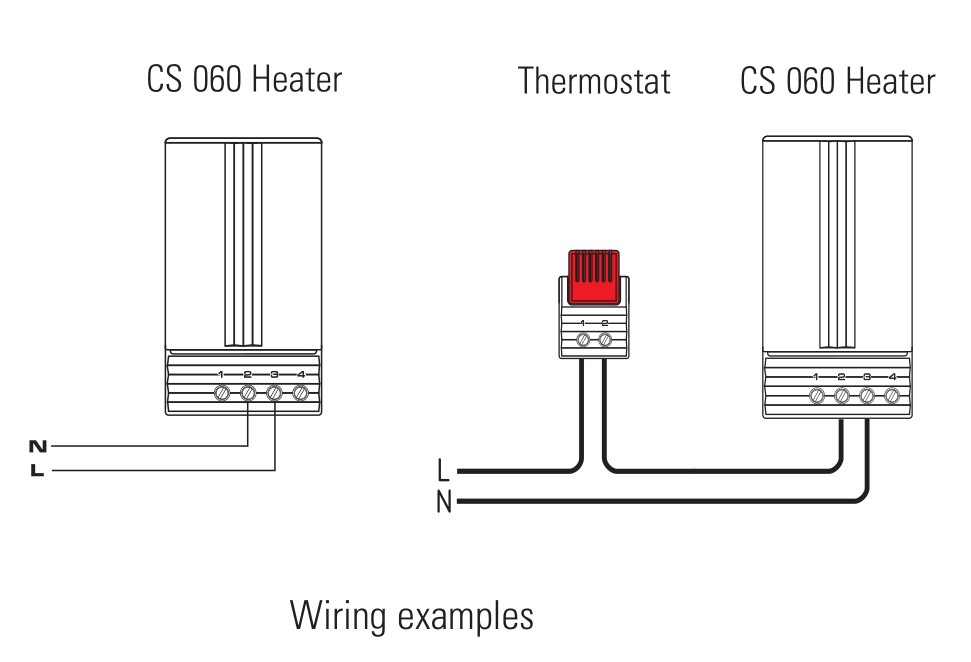

WIRING DIAGRAM

CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20
