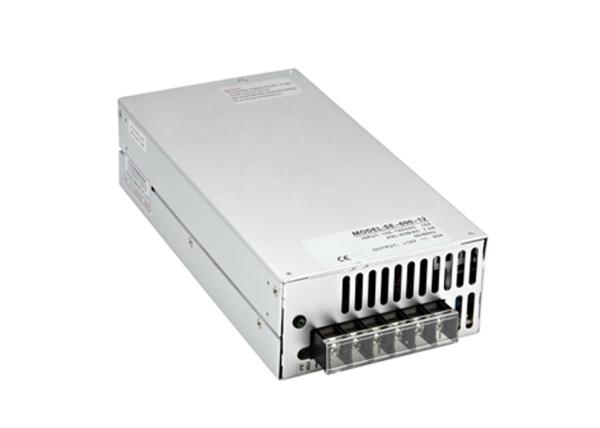

600W 12V Switched Mode Power Supplies Long Service Life SE Series

Name: 600W 12V Switched Mode Power Supplies Long Service Life SE Series
Brand: Winston/OEM
Price: 92.4 USD

Brand Name : Winston/OEM

Model Number : SE-600W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD92.4

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Condition : Original New

Weight : 2.17KG

Working temperature : -10℃~+50℃

Input voltage range : 90-132VAC/180-264VAC

Contact Now

Single Output Power Supply 600W 12V Long Service Life SE Series

Summary

Single output: power 600w
Input voltage: 90-132VAC/180-264VAC by switch

Technique parameter:

Model	SE-600-5	SE-600-12	SE-600-24	SE-600-48
DC output voltage current	15V 0-100A	12V 0-50A	24V 0-25A	48V 0-12.5A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	180mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±7%	±0.5%	±0.5%	±0.5%
Efficiency	78%	83%	87%	88%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
input voltage range	90-132VAC/180-264VAC by switch 254-370vdc 47-63Hz
Inpact current	Cold start current 50A/230VAC 30A/115VAC
Overload proctection	105%-150% cut off the output, automatic recovery
Over-voltage protection	120%-140% shut down O/P voltage, re-power on to recover
Setup rise hold up time	1000ms, 50ms, 16ms/230vac at full load
Withstand voltage	I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance	I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Dimension	24712763.5cm
Packing	37.53125.5cm/6PCS/13.5kg

The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

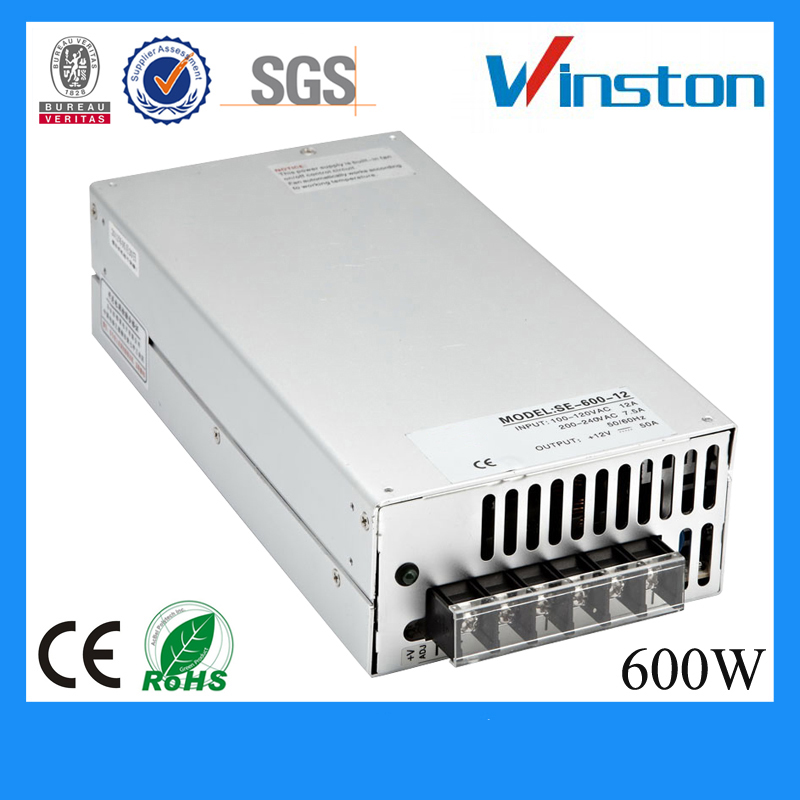

Product Picture

600W 12V Switched Mode Power Supplies Long Service Life SE Series

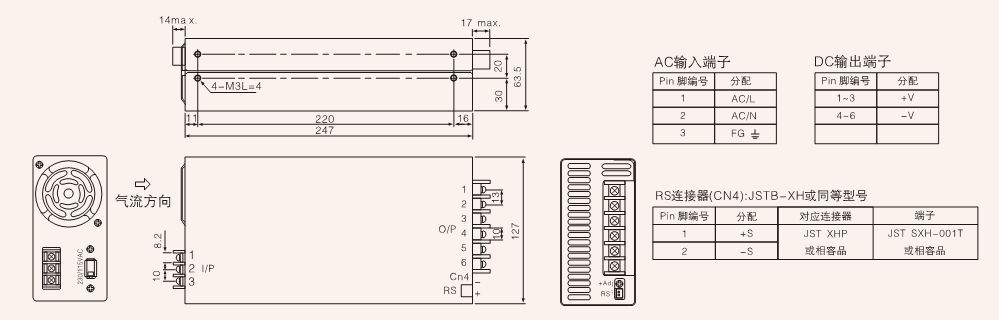

Dimensions
